Final_ex3

Because my lumion is out of trial version and it does not work properly, I finally decide to rendering the final image in visulizer. And this is how it looks like, I have added color from red to purple in order, as the result, when sun light exposure, the floor of the bridge would be colorful. However in the part of resting place, I put common glass on the top in order to ignore the refraction and have a good rest.

5_developed_rendering_ex3

As you can see from the image, I have added in some rest place to achieve its multi-function, people can get better view from upper level. But there is still some issues occur as glass color didnt show up properly.

4_draft_Rendering

The first two images were the first rendering for first draft. It seems like some part of wall structures miss, but roughly the shape of the bridge was done for flow-able theory.

The last two images were shown as the further rendering for my bridge. It was added in the campus model to locate its best position and some material outfit to see the overall viewing. The blue part was the glass for the theory of refraction.

file and video Link_ex3

The Link down below is the final sketch up file:
https://www.dropbox.com/s/d71me0v4puobrvz/final.skp?dl=0
The link down below is the animation that shows the bridge in details with moving element:
https://www.dropbox.com/s/8c9uk0ew4hihw56/final_animation.mp4?dl=0

Theory_ex3

The Bridge that I am going to make will be refractive, functional and flowable.
I am going to using the glass material to do the refractive part and make it functional like rest place or something. And outlooking would be flowable.

36 textures

18 perspectives_ex3

Participation_ex3

5 pictures of lumen rendering results_ex2

final in the sketchup_ex2

I put three different textures onto the facade of the structure. To make it look more dimension, I use glass material to combine with it. Hope the glasses material would reflect the view of the cloud on the sky in lumion.

36 textures_ex2

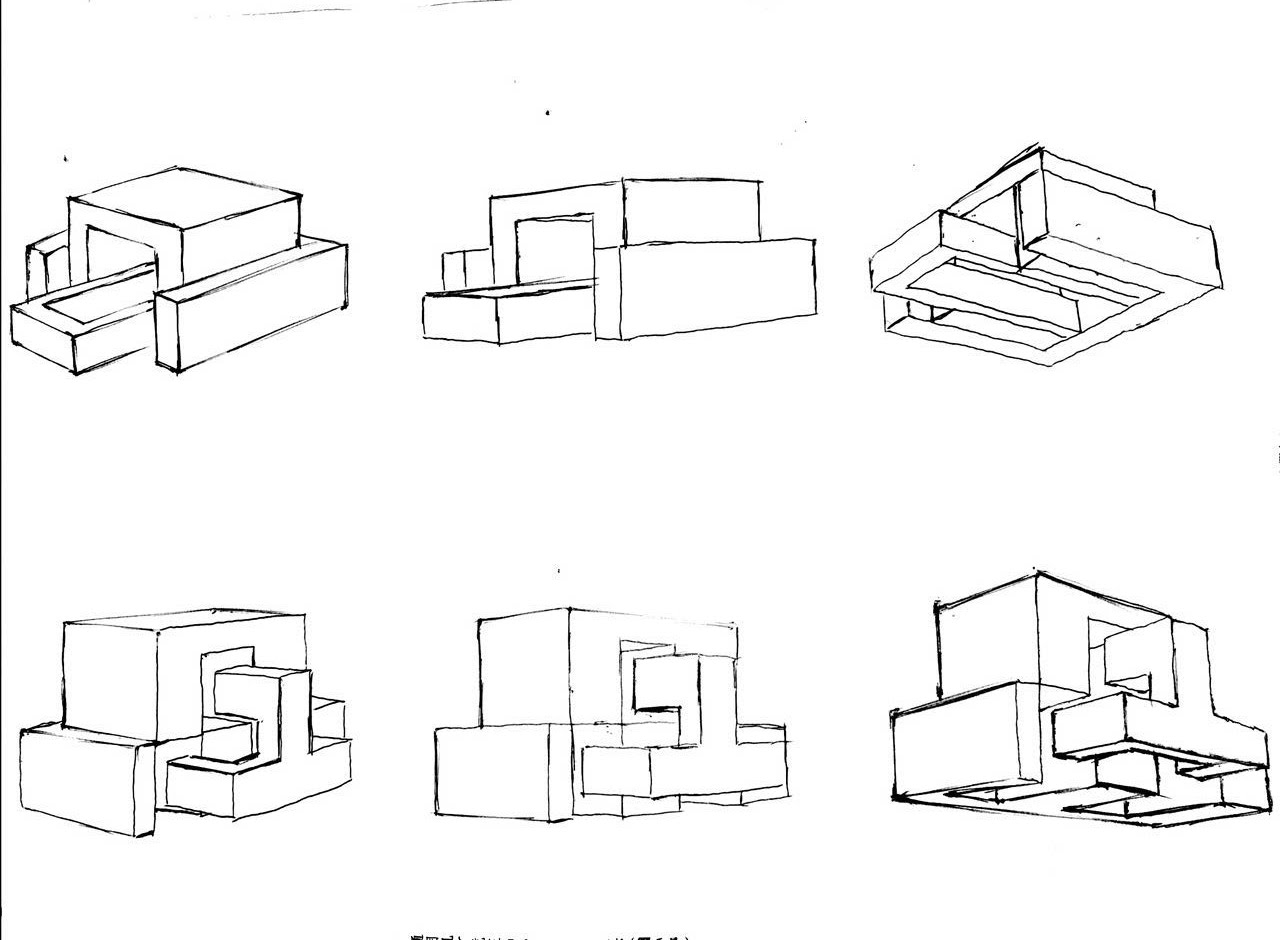

18 sketch axonometrics_ex2

description_ex2

• The symbolized structure is placed on the right of the entrance of campus.
• The two concepts that I choose were :the purpose of Architecture is not only about shelter, is about a very simple enclosure. It should excite you, calm you, to make you think, which quotes from Zaha Hadid and another one is Treating architecture as landscape from Ma Yanking.
• The twisted outfit was inspired from the concept which is what Zaha Hadid said, the purpose of architecture is about a very simple enclosure. I was trying to make a unique looking for the structure. I was surprised the twisted result and decide to arrange them vertically.
• I firstly put a random box on the ground and add another exactly same one on the top of first one. Once two box has a interaction point, Sketchup will make it as one model, then select the upper one to anti-clocked twist.
• And then enlarge the whole thing to fit the concept from Ma Yanking, which is treating architecture as landscape. I started arrange it to correspond to the environment.

The two concepts_ex2

The concept from Zaha hadid:

• The purpose of Architecture is not only about shelter, is about a very simple enclosure. It should excite you, calm you, to make you think.

The concept from Ma Yanking:

• Treating architecture as landscape.

3 Animation presentation. _ex1

The first video is simply going from front to the back, but with slightly change the view of camera from horizontal view to bird eyes view.

The second video is also simply going from top to the bottom of the model, it is straight forward without any view changing.

The third one use horizontal section plane and vertical section plane to create multiple views. Instead of going on direction, it turns out to present as the circular motion.

3 pictures to show the result of the model in sketchup._ex1

This section that I drew was been chosen to modify, it also been updated several times on model by the time. The pictures below show the rendering result of model, which includes ground floor, upper floors and underground floor.

36 textures drawing_ex1

18 Sections Drawing_ex1
